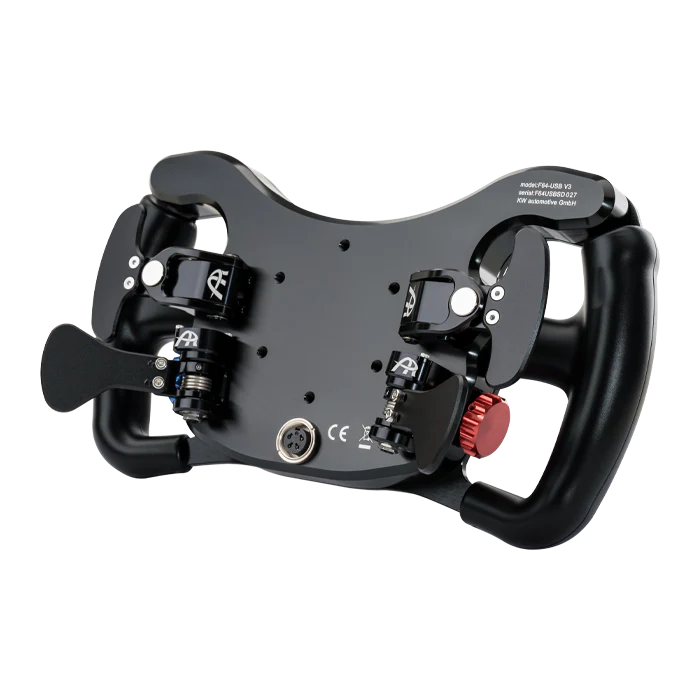

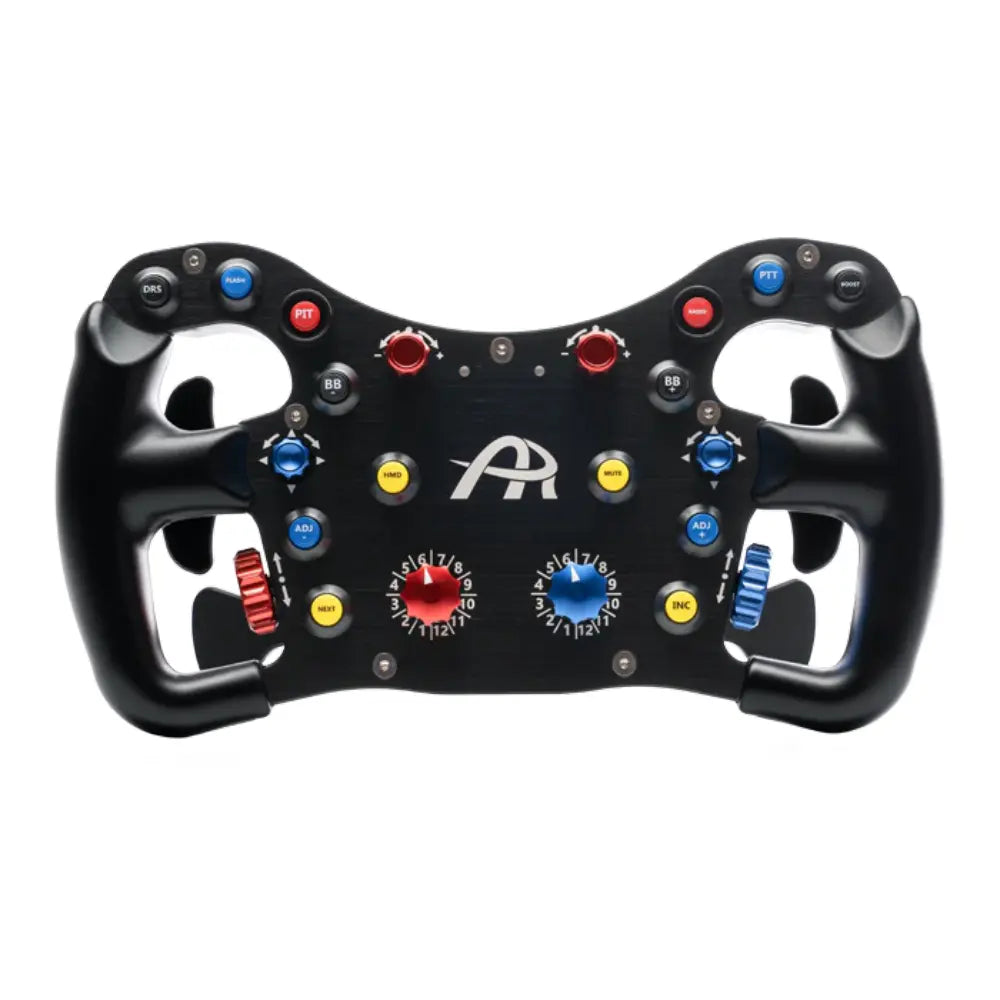

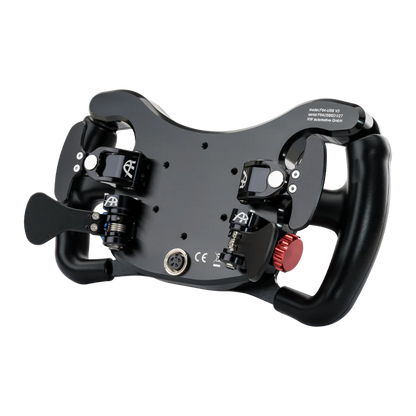

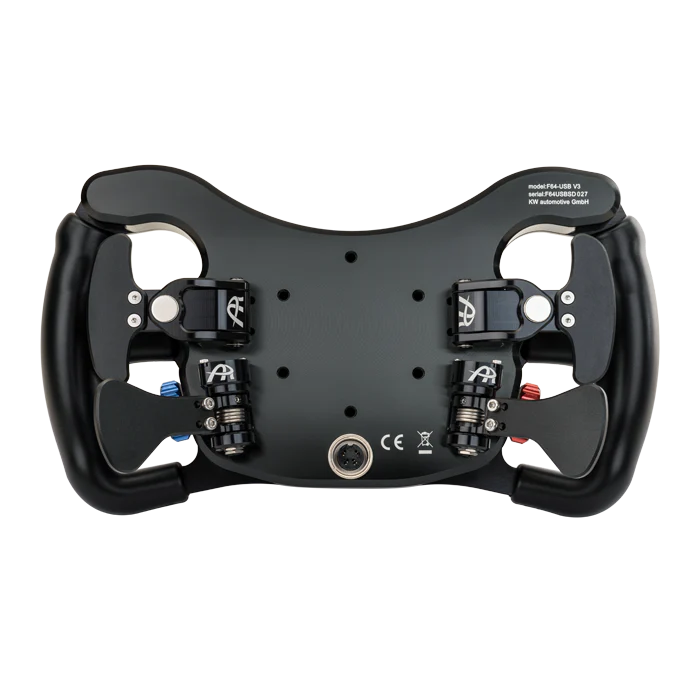

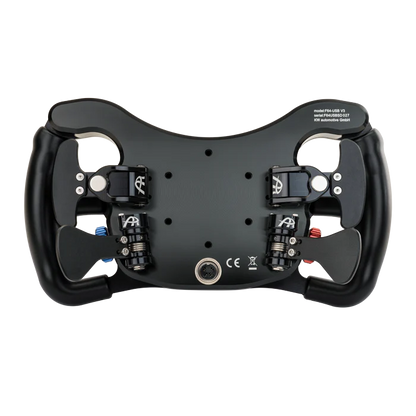

Ascher Racing Steering Wheel F64-SC V3 (Wireless)

Product Summary

• • Compatible with Simucube Wheelbases

  • 285mm diameter
  • Maximum grip level from closed, ergonomic rubber grips
  • 14 x push buttons with tactile feeling
  • 2 x multifunctional 7-way joysticks
  • 2 x encoders (inc. push button functionality)
  • 2 x 12-position rotary switches
  • 2 x thumb encoders
  • Magnetic paddle shifters
  • Contactless motorsport clutch paddles

Simucube Wireless

• • Wireless connection to SC2
  • SC1 (Simucube 1): additional receiver module required
  • Low latency
  • Low energy consumption: 2-3 years of battery life on heavy daily usage
  • Standard 14250 Lithium battery for maximum capacity
  • Easy to swap battery via back side access window
  • Button inputs via Simucube – no additional Windows controller
  • Hot swapping wheels in-game without reconfiguring inputs
  • Maximum signal quality via external stub antenna

New features

• Compared to its previous model, the F64-SC V3 features new encoder, joystick and rotary knobs, as well as new thumb encoders and new motorsport clutches.
• New knobs improve the ergonomics and the feedback of the buttons
• New thumb encoders allow to change setting while driving without taking the hand off the wheel
• New motorsport clutch
• Smooth operation due to pre-tensioned ball bearing design
• Waterproof, shock resistant, wide temperature range
• Contactless, on-axis hall sensor for linear & unlimited operation
• Designed for harsh real racing environment
• Precise and repeatable driver input

64 Inputs

• • 14 x push buttons with positive tactile feeling
  • 2 x protective button guards
  • 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
  • 2 x encoders inc. push button functionality, aluminium knob
  • 2 x 12-position rotary switches, aluminium knob
  • 2 x thumb encoders
  • 2 x paddle shifters
  • 2 x motorsport clutch paddles with electronic bite-point calibration

Magnetic Paddle Shifters

• • CNC machined and anodized out of automotive aluminium
  • Strong snap-action force
  • Alternative magnets to reduce force included
  • Reliable automotive switch

Contactless Clutch Paddles

• • contactless, on-axis hall sensor for linear & unlimited operation
  • precise and repeatable driver input
  • waterproof, shock resistant, wide temperature range
  • smooth operation due to pre-tensioned ball bearing design
  • designed for harsh real racing environment
  • precision cnc machined aluminium design
  • market leading compact design

Electronic Bite-Point Calibration

• • Precise adjustments in 1.0 % and 0.1 % increments
  • Change bite-point via configuration tool or directly on the wheel rim:
    1. push both joystick buttons for 1s to acces bite-point mode
    2. LED lights up to indicate calibration mode
    3. rotate left joystick for 1.0 % increments / right joystick for 0.1 % increments (LED flashes to indicate changes)
    4. exit calibration mode by pushing both joysticks again for 1s
  • Recommended procedure for finding best setting:
    1. enter calibration mode and set bite-point to high value, e.g. 80 %
    2. pull slave clutch only
    3. apply throttle
    4. reduce bite-point in 1.0 % increments (left joystick) until vehicle starts moving
    5. make test starts to fine tune desired bite-point setting
    6. exit bite-point calibration mode
  • Recommended procedure for quick race starts
    1. pull both master and slave clutches
    2. apply throttle
    3. race start -> let master clutch snap
    4. it will take less than 20 ms to reach desired bite-point
    5. slowly release slave clutch

Button Labels

• • 50 pcs button labels each black and white
  • 72 pcs encoder labels (blue, green, red, black, yellow, white)
  • Labels for various common steering wheel inputs

High Quality Finish

• • Maximum grip level from closed, ergonomic rubber grips
  • Machined out of automitive aluminium
  • Black anodized and laser engraved
  • Brushed frontplate surface finish
  • Glass bed blasted paddle surface finish

Compatible Wheel Bases

• • • Simucube 2
    • Simucube 1 (OSW, Mige)
    • Accuforce*
    • Leo Bodnar**
    • OSW (Argon)**
    • Simagic*
    • VRS Direct Force***
    • Fanatec Podium Hub*

    * captive screws are required
    ** Wheelbase comes without QR
    *** longer screws are required

SPECIFICATIONS

• 285 mm wheel diameter
• 6 x 70 mm bolt pattern
• spacer may be required to create sufficient clearance to the wheel base
• M5 x 12 mm stainless screws to mount QR included
• Quick Release not included
• to mount M5 threaded QRs, use captive screws
• mass: 1140 g
