The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.
MOZA Racing R12 (V2) Direct Drive Wheel Base
MOZA Racing R12 (V2) Direct Drive Wheel Base
Regular price
$749.99 CAD
Regular price
Sale price
$749.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Feel the adrenaline of every turn with the MOZA R12 Direct Drive Wheel Base. Boasting 12Nm of raw power and the NEW NexGen 4.0 Force Feedback algorithm, it delivers ultra-precise steering and immersive feedback that brings the track to life. The R12 is designed for those who live for the thrill of racing, built with durable aviation-grade aluminum and featuring ultra-low latency. Whether you are a pro or a sim racing enthusiast, the R12 will push you to the limit and let you take full control of the race.
12Nm DD Power
21-Bit Magnetic Encoder
• With 280MHz High-Performance Processor
• Divides each full rotation into 2,097,152 precise steps.
• Delivers microscopic 0.00017° resolution.
• Enables ultra-smooth control feel and instant response.
• Reproduces exceptionally detailed force feedback.
• Delivers microscopic 0.00017° resolution.
• Enables ultra-smooth control feel and instant response.
• Reproduces exceptionally detailed force feedback.
Innovative Segmented Rotor Design
Asymmetric segmented skew design Significantly reduces cogging torque & EM vibration Near-silent operation at all speeds
High Torque Density
Optimized slot-fill copper windings High-permeability silicon steel core NdFeB permanent magnets for maximum output
18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response
Wide Torque Range
Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off
Carbon Fiber Wrapped Rotor
• Automotive-grade rotor protection.
• Effectively suppresses eddy current losses.
• Superior thermal management for sustained performance.
NexGen 4.0 Force Feedback Algorithm
• Enhanced Dynamic Feedback
• More refined and detailed force feedback.
• Sharper, more defined curbs and rumble strip sensations.
• Instant response to weight shifts and tire slip.
• New cogging torque compensation for ultra-smooth steering.
iRacing 360Hz Mode
• Delivers richer and more responsive force feedback.
• Heightens immersion and driving precision.
Intelligent Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.
Aviation-grade Aluminum
Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminum alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.
Compact Design
The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.
Hand-off Protection
This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel. The NextGen3.0 also introduces Hand-off Protection Mode 2, providing protection without disrupting drifting. Additionally, it enhances force feedback response speed and overall driving sensations.
SPECIFICATIONS
- Drive Type: Direct Drive
- Max Wheel Rotation: 90 - 2700°
- Housing Material: Aluminum
- Housing Color: Black
- Peak Torque: 12 Nm
- Peak Power: 216W
- Input Voltage: 110V~220V AC —>36V DC
- Encoder Resolution: 21-Bit Magnetic Encoder with 280MHz High-Performance Processor
- USB Refresh Rate: 1000 Hz
- App Functions: Supported
- Quick Release: Supported

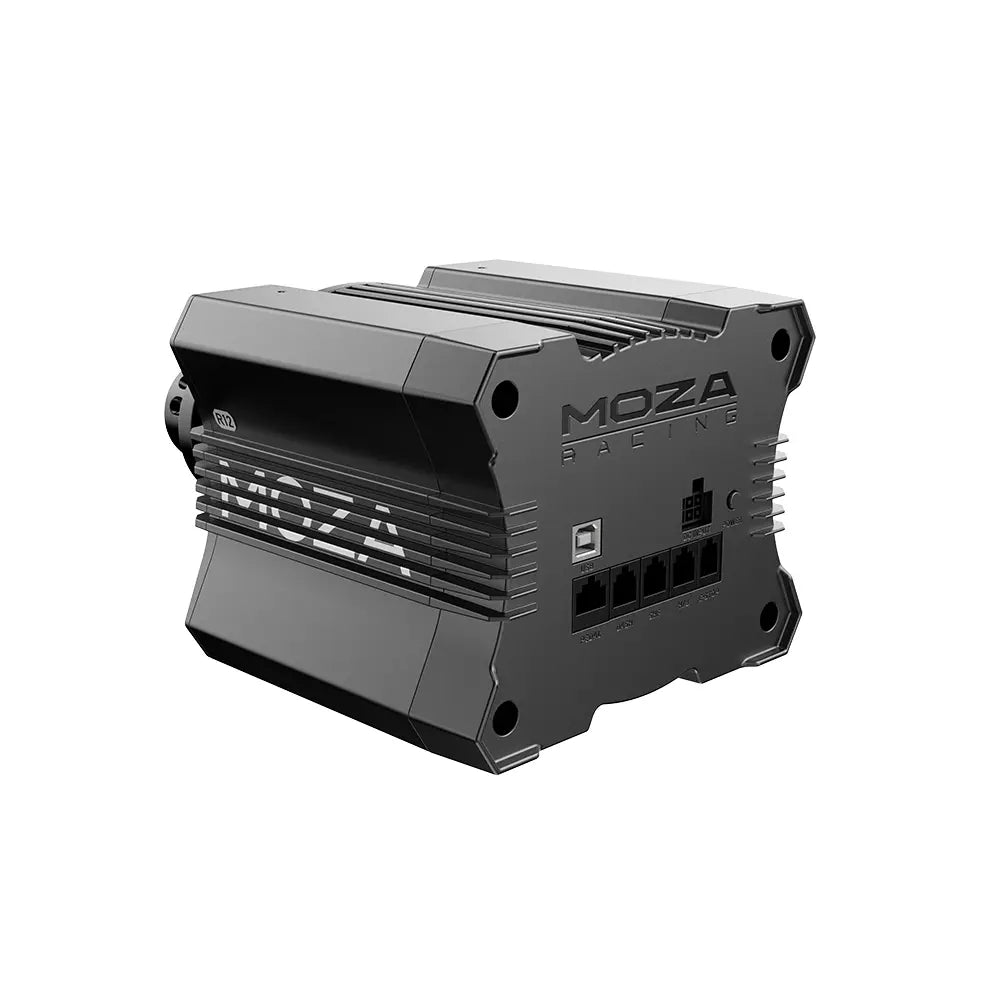

- Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
- Box Contents: R12 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
- Fixing Method: 4-hole bottom mount
- Desk Clamp: Optional
- E-stop: Optional
- Online Firmware Update: Supported
- Dimensions (mm): 225.87 x 156.68 x 123.99
.
