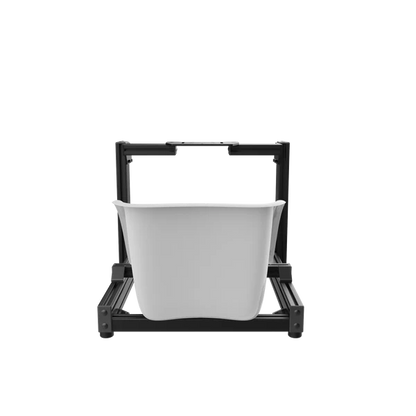

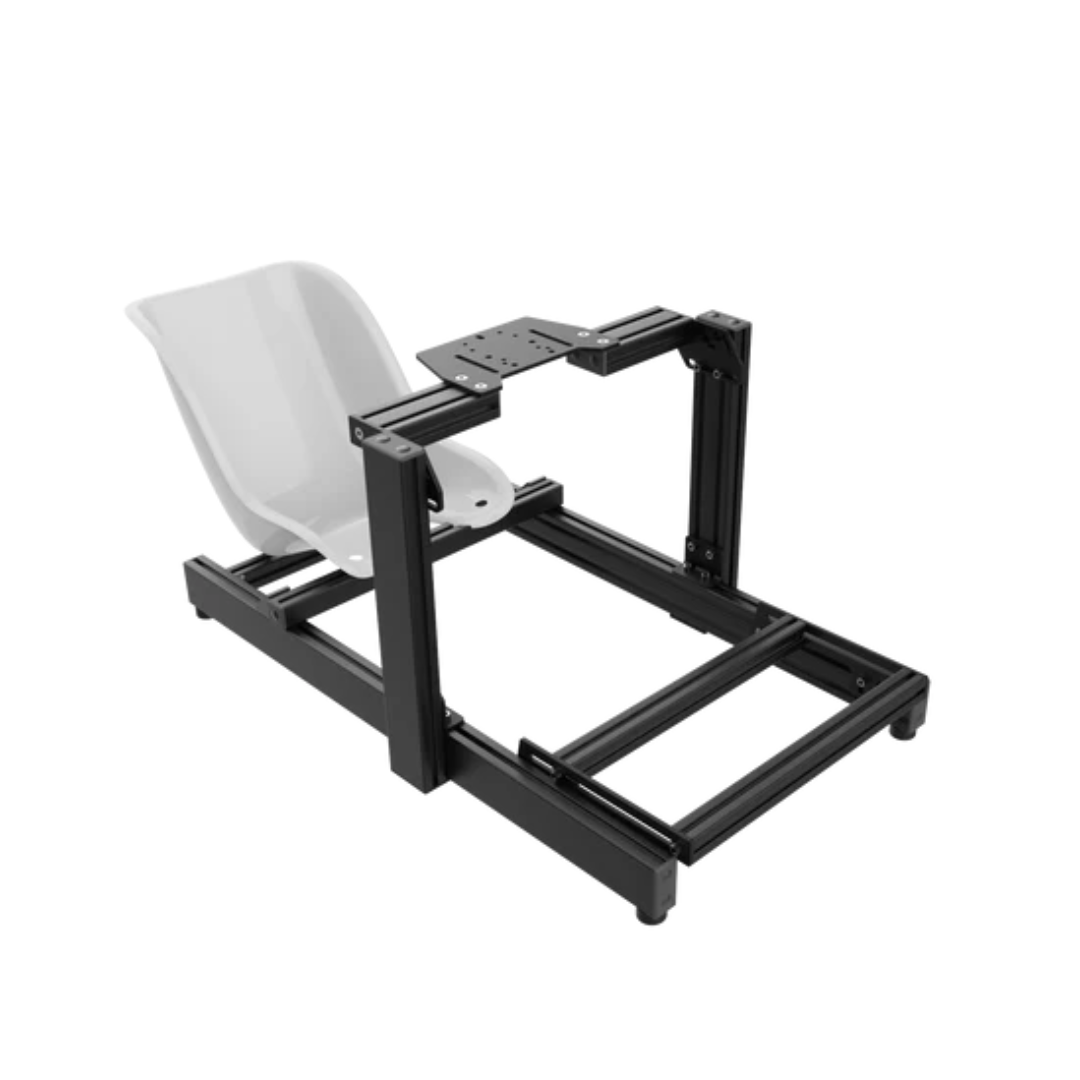

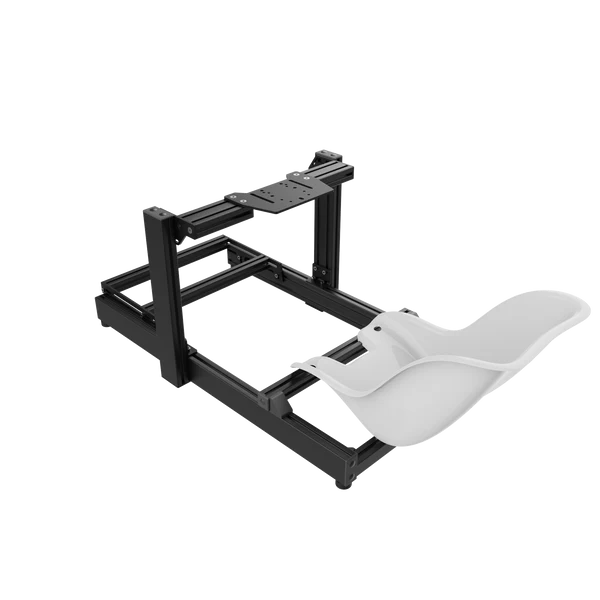

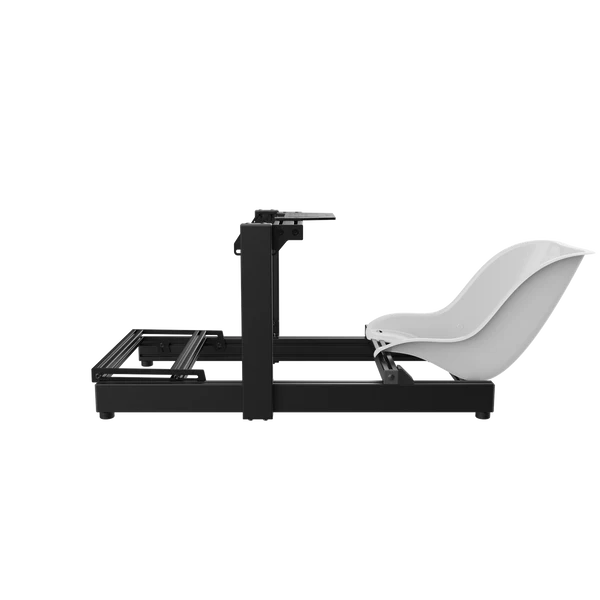

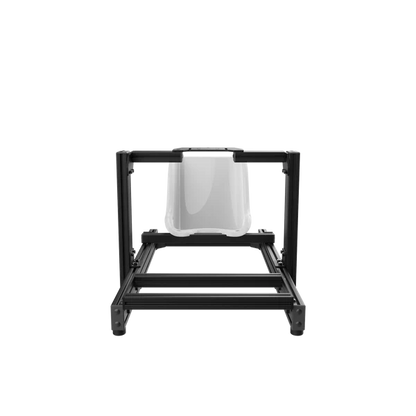

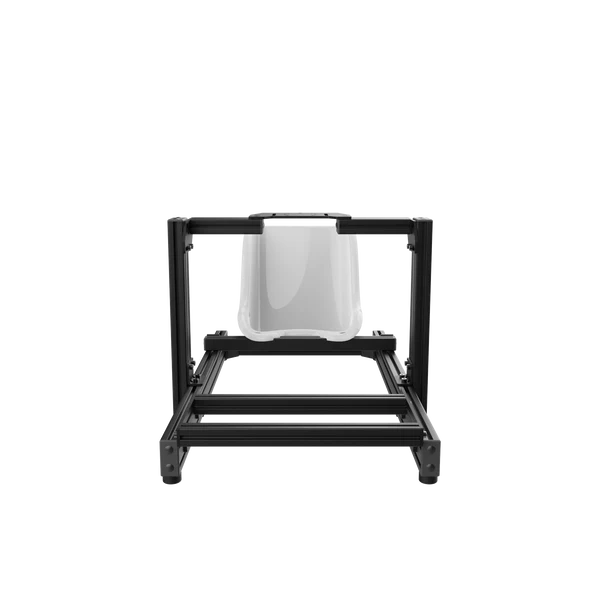

Advanced Sim Racing - ASR K (Generation 1)

ALL ASR-K ARE MADE TO ORDER, LEAD TIME OF 10 TO 15 BUSINESS DAYS

• Meet the ASR-K, made for Kids age 4 to 12 and Karting.


• We created the ASR-K with the goal of providing an affordable chassis option for parents looking to get their kids into karting or for training at home.


• The ASR-K is robust enough to support any kind of belt-driven or direct drive powered wheel base. Although it doesn't feature heavy aluminum profile like our upper tier models, it is made of top-grade alloy Aluminum sourced in the United States of America.


• Available with the seat included or without the seat.


• Karting seat is optional. It is predrilled to fit the ASR-K and includes low profile Button Head M8 bolts to avoid discomfort.


• Produced and packaged in Canada with the utmost care and attention.

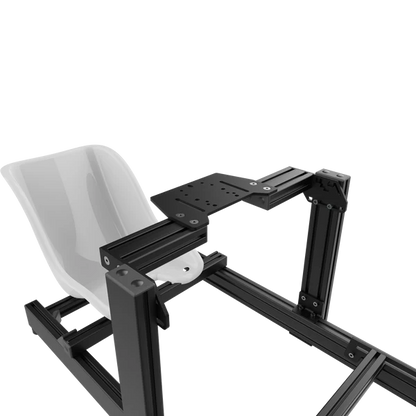

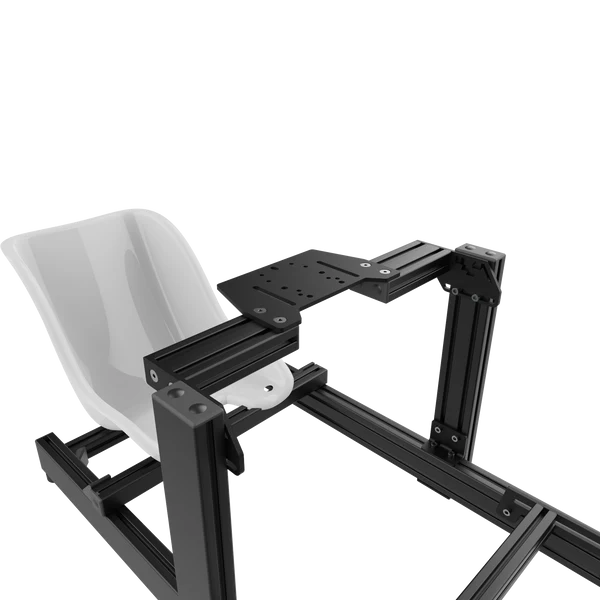

• Highly adjustable wheel deck and pedal plate that give you the opportunity to create a customized and optimal racing position. Also allows for adjustments needed as your kid is growing up.


• Chassis size and format is adequate for kids up to 5 ft and around 110lbs.


• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)


• Four Wheel Deck options available :
• Advanced Standard Wheel Deck compatible with bottom mounting wheelbases (Logitech, Thrustmaster, etc.)
• Podium DD Side Mount (Fanatec Podium DD1/DD2 Series)
• CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)
• Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)

SPECIFICATIONS

• Base composition : 3" x 1.5"
• Steering column composition : 3" x 1.5"

• Base length : 40"
• Base width : 22"
• Chassis height from rubber feet to tip of the steering column : 20"

WHAT'S INCLUDED?

• Box 1 (Aluminum) 50" x 5" x 5"
• 2 x Aluminum profile 40" x 3" x 1.5"
• 2 x Aluminum profile 16" x 3" x 1.5"
• 1 x Aluminum profile 19" x 1.5" x 1.5"

• Box 2 (Aluminum) 22" x 5" x 3"
• 1 x Aluminum profile 22" x 1.5" x 1.5"

• Box 3 (Hardware) 10" x 8" x 4"
• 8 x Corner Gussets and Plastic Caps
• 28 x M8 Socket Cap Screws (16mm)
• 1x M8 Button Head Screws (12mm)
• 2x M8 Button Head Screws (25mm)
• 31 x M8 T-Nuts
• Endcaps
• 2 x 1.5" Endcaps
• 6 x 3" Endcaps
• 14 x Pushpins
• 4 x Rubber feet
• 4 x M6 Screws (20mm)
• 4 x M6 T-Nuts

• Box 4 (Wheel Deck)
• Depending on your selection: Advanced Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Side Mount
• 8 x Flathead socket cap screws (16mm)
• 8 x M8 T-Nuts
• 2 x Aluminum profile 5 ⅝" x 3" x 1.5"

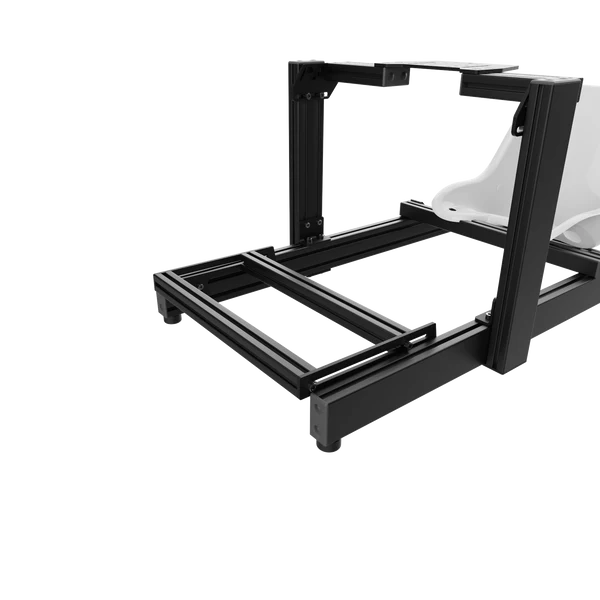

• Box 5 (Pedal Tray)
• Steel Pedal Plate - 19" x 16" x 4"
• 1 x 3/16" Steel Pedal Plate
• Box 6 (Karting Seat)


COMPATIBILITY

• Advanced Wheel Deck
• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD & GT DD Pro)
• Podium DD Side Mount
• Fanatec Podium series DD1 and DD2
• CSL DD Pro Side Mount
• Fanatec CSL DD
• Fanatec GT DD Pro
• Front Mount
• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases
• Steel Pedal Plate
• Asetek SimSports Invicta Sim Racing Pedals
• Heusinkveld
• Sim Pedals Sprint
• Sim Pedals Ultimate
• Sim Pedals Ultimate+
• Thrustmaster products
• Fanatec products (Except CSR Pedals)
• Logitech products
• Simtrecs ProPedal GT
• Asetek SimSports Invicta Sim Racing Pedals
• And much more (please inquire for specific pedal sets)

ASSEMBLY GUIDE

The ASR K assembly guide is available right here.

More assembly guides available on our dedicated page.
