Asetek SimSports Elastomer Kit

• Personalize your braking experience to your preference with the Elastomer kit.

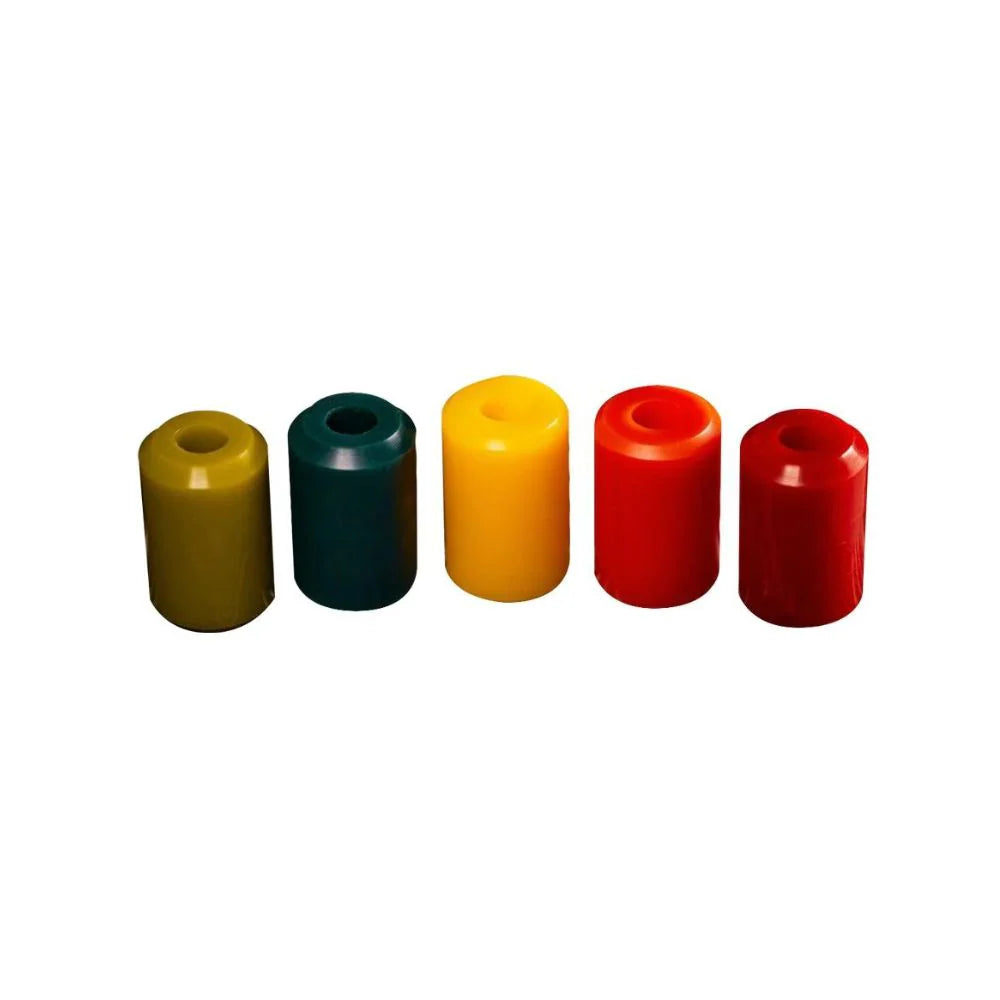

• The most requested accessory to date, The Elastomer kit includes five elastomers of different strengths, providing new options for a softer or harder brake feeling on your Asetek SimSports® pedals.
• Allowing you to maximize your performance or achieve the perfect simulation of your favorite ride!
• Compatible with all Asetek SimSports® Brake & Throttle pedal sets.

PRESSURE NEEDED TO REACH 2ND STAGE

Underneath is a chart showing the pressure needed to reach 2nd stage on your Invicta™ Brake.

• Light Green – 25bar
• Green – 30bar
• Yellow – 40bar
• Orange – 60bar
• Red – 90bar

This chart is showing the pressure needed to reach 2nd stage on your Invicta™ Brake fitted with the Long Travel Kit.

• Light Green – 30bar
• Green – 45bar
• Yellow – 50bar
• Orange – 75bar
• Red – 95bar

Underneath is a chart showing the pedal force needed to reach 2nd stage on your Forte® Brake.

• Light Green – 35kg
• Green – 50kg
• Yellow – 60kg
• Orange – 100kg
• Red – 140kg

How To: Change the Elastomer in Invicta™ Pedals
