Asetek SimSports Pagani Huayra R Sim Racing Pedals

Asetek SimSports Pagani Huayra R Sim Racing Pedals

$1,499.99 CAD
$1,499.99 CAD
Sale Sold out

  • The Pagani Huayra R Sim Racing Pedal Set is brought to life through a unique collaboration between Asetek SimSports™ and Pagani Automobili. Driven by a shared passion for performance and innovation, we – Asetek SimSports™ and Pagani Automobili – have joined forces to provide the closest experience you can get to the adrenaline rush of driving a Pagani Huayra R – one of the world’s most exclusive, high-performance hypercars.

  • The real-life Pagani Huayra R track car is a design of immense beauty and performance. It packs 850 horsepower and 750 Nm of torque in a mere 1.050 kilogram body. Manufactured in just 30 units with a base price of EUR 2.6 million (plus tax!), this is as exclusive as a supercar gets.

  • The pedal arms and footplates on the Pagani Huayra R Sim Racing Pedal Set are based on the exact design used in the hypercar itself, with just a few tweaks to fit it for sim racing use. The provided elastomer is designed to give the feel of the Huayra R´s brake pedal, using Asetek SimSports’ T.H.O.R.P.™ brake system (Twin Hydraulic Opposing Rapid Pistons).

  • The hydraulic sim racing pedals are plug’n’ play out of the box using the Asetek SimSports RaceHub™ software, which has been tailored to the Huayra R sim racing pedals. RaceHub enables quick and easy customization of the pedal settings as well as the configurable ARGB.

TECHNICAL SPECIFICATIONS
  • General Tech
    • Italian design and Danish engineering, unified
    • Pedal arms and footplates based on real-life Pagani Huayra R track car
    • Adjustable pedal stops and travel settings
    • All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces
    • Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub™ software
    • Adjustable pedal plates that can be moved along the x- and y-axis
    • All adjustable mechanical features are by default colored gold
    • Made in Denmark
    • Sustainable manufacturing with 100% on-site re-use of waste material
    • Tried and tested for hundreds of hours by real-world Formula and GT drivers and sim racing pros. Lifetime tested in automated mechanical rigs for a million activations
    • Only one USB connection to the PC from the pedal base
  • Brake System

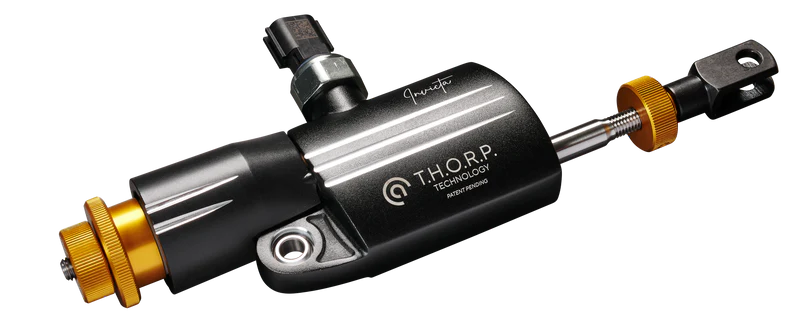

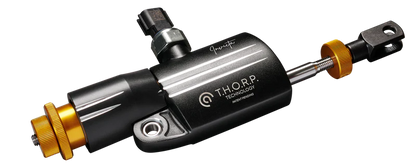

    • Unique Twin Hydraulic Opposing Rapid Piston (T.H.O.R.P.™) brake system which provides a rock-hard brake pedal to mimic the feel of the Pagani Huayra R, including 2-stage racecar braking with minimum pedal travel
    • Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
    • Made from forged aluminum
    • Automotive-grade pressure sensor
    • The in-house designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
    • Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect racecar feel as well as not overloading the elastomer
    • Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
    • Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)
    • 100 bar of pressure equals 180 kg of force on the face of the pedal plate
    • Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
  • Throttle System
    • Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
    • 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
    • Adjustable pedal hardness, pedal travel, and pedal stop
    • Interchangeable spring for bigger step in pedal hardness
    • Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
    • Dimensions
      • Depth, width, and height: 457 mm x 212 mm x 256 mm
      • Weight: 3 kg
    COMPATIBILITY
    • Compatible with all ASR-Brand SimRacing Chassis featuring the Steel Pedal Plate. Not compatible with Advanced SimRacing's Aluminum Pedal Tray & Adjustable Heel Rest.
    • PC
      • Platforms: Windows 10, 11
    • Console support planned in the future
    • Games
      • Assetto Corsa
      • Assetto Corsa Competizione
      • DiRT Rally
      • DiRT Rally 2.0
      • F1 Series
      • iRacing
      • Project Cars 2
      • rFactor 2
      • And many more (all games that accept direct input devices)
