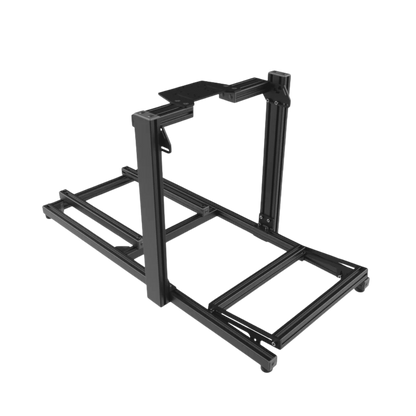

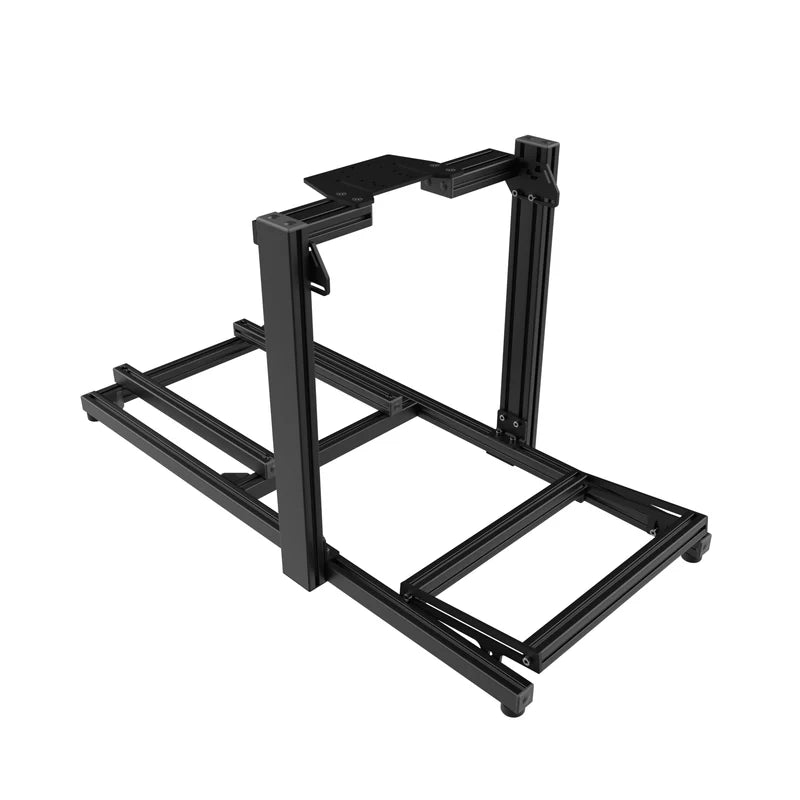

ASR 1 (Generation 2)

• Generation 2 Improvements & Changes
  • Brand new wheel deck design that offers even more flexibility and adjustability for the position of your wheelbase.

• • Updated Pedal Tray design featuring aluminum profile cross beams and corner gussets to maximize both compatibility and rigidity.


  • Using key learnings from our Generation 1 ASR PRO flagship chassis, we have improved the assembly and mounting system to offer the maximum possible rigidity and stability on this entry-level chassis.


  • Now offered with our signature "Flat Face" Extruded Aluminum Profile.


• The ASR is now offered in powder coated Matte Black at an even cheaper price than before. It can also be powder coated to the color of your liking for a premium.


• The ASR 1, with its 1.5" aluminum profile base, is our entry level chassis that doesn't compromise in any way and offers SimRacers excellent value for their investment when compared to the competition at the same price point.


• We created this very affordable chassis with zero flex, zero frills and unparalleled quality.
• It can offer performance far superior to any wheel stand, folding chair-type rig or entry level chassis available out there, at a price that literally can't be beat by any of our competitors.


• The ASR 1 is built tough to support any kind of resistance-type or belt-driven wheel base. Although it doesn't feature heavy aluminum profile like our upper tier models, it is made of top-grade alloy Aluminum sourced in the United States of America.


• Produced and packaged in Canada with the utmost care and attention.


• Although a bit more constrained when it comes to pedal plate adjustment and angle possibilities when compared to the ASR 3, 4 & 6, the chassis will still be easily adjustable in pedal height, angle, and position depending on the racing style and comfort level you are looking for.


• Highly adjustable wheel deck that gives you the opportunity to create your own customized and optimal racing position.


• Chassis size and format is adequate for most builds and heights (Up to 6'6" or 1.98m).


• The ASR 1 is sold with our Standard Wheel Deck (Entry level and mid-range products from quality manufacturers such as Thrustmaster, Fanatec and Logitech).
  • You will find additional options in our Wheeldecks & Wheelbase Mounts collection


• The ASR 1 doesn't come standard with a Shifter Arm, but we offer 2 distinct options for SimRacers looking to expand their arsenal of peripherals: The Simple Shifter Arm which consist of one horizontal aluminum beam that can be mounted to your rig's steering support column, or the Supported Shifter Arm that includes a thicker horizontal aluminum beam and a vertical support beam that attaches to your rig's base for extra sturdiness.


• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)

SIM RACING GARAGE REVIEW (GENERATION 1 - LEGACY)

• ASR 1 Cockpit Review Part 1 "The Build"
• ASR 1 Cockpit Review Part 2 "The Setup"

SPECIFICATIONS

• Base composition : 1.5" x 1.5"
• Steering column composition : 3" x 1.5"

• Base length : 50"
• Base width : 22"
• Chassis height from adjustable rubber feet to tip of the steering column : 26.5"
• Pedal plate : 3/16" Solid steel
• Weight when assembled (w/o accessories): 69lbs.

WHAT'S INCLUDED?

• Box 1 (Aluminum)

  • 2 x Aluminum profile 50" x 1.5" x 1.5"

  • 2 x Aluminum profile 22" x 1.5" x1.5"

  • 2 x Aluminum profile 19" x 1.5" x1.5"

  • 2 x Aluminum profile 18.5" x 1.5" x 1.5"

  • 2 x Aluminum profile 26" x 3" x 1.5"

• Box 2 (Hardware, Wheel Deck & Pedal Plate)

  • 2 x Pedal deck sides

  • 2 x Lower stiffening plates

  • 2 x upper L plates

  • 8 x Corner Gussets

  • Endcaps

  • 8 x 1.5” Endcaps

  • 2 x 3” Endcaps

  • 16 x Pushpins

  • 40 x M8 Screws (16mm)

  • 40x M8 T-Nuts

  • 4 x Rubber feet

  • 4 x M6 Screws (20mm)

  • 4 x M6 T-Nuts

  • Seat mounting hardware

  • 4 x M8 Screws (12mm)

  • 4 x M8 T-Nuts

  • Wheel Deck Components

  • Steel Plate with various mounting patterns

  • 2 x Aluminum profile 6 7/8" x 3" x 1.5"

  • 8 x Flathead socket cap screws (16mm)

  • 8 x M8 T-Nuts


COMPATIBILITY

• Standard Wheel Deck
• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10

• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)


• Fanatec (Podium DD & CSL DD Side Mount)
• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+


• Steel Pedal Plate
  • Sim Pedals Sprint
  • Sim Pedals Ultimate
  • Sim Pedals Ultimate+
• Asetek SimSports Invicta Sim Racing Pedals
• Heusinkveld
• Thrustmaster products
• Fanatec products (except the CSR Pedals)
• Logitech products
• Simtrecs ProPedal GT
• Asetek SimSports Invicta Sim Racing Pedals
• Simagic P1000 & P2000
• And much more (please inquire for specific pedal sets)

ASSEMBLY GUIDE

ASR 1 (Generation 2) Assembly Guide by Advanced SimRacing (PDF)
